Observant V1 Camera

Description

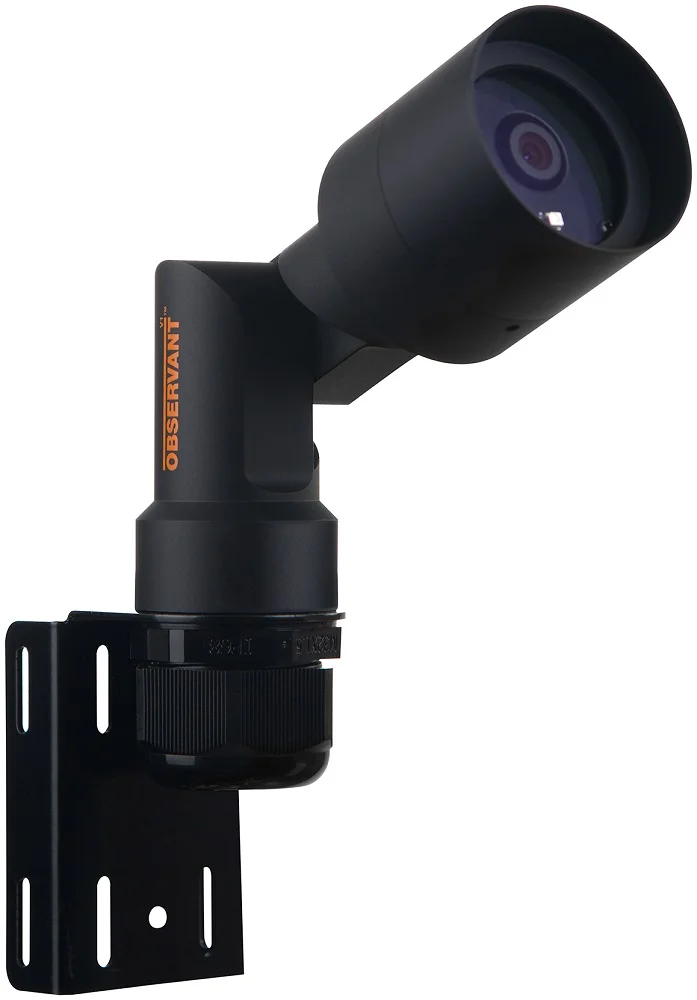

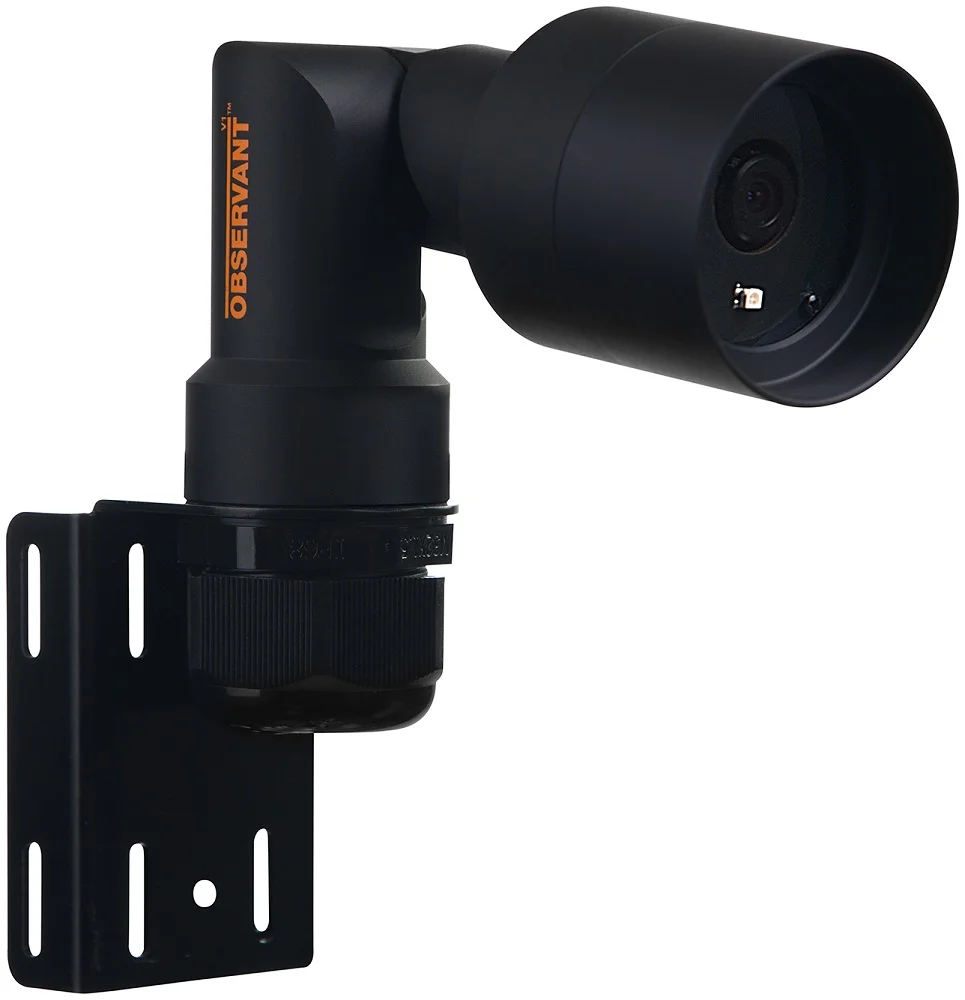

The Observant V1 is a colour still image camera designed to survive harsh environments and operate on a minimum of power. Used in conjunction with one of Observants telemetry platforms (C3, Solo, Pico).

The body of the V1 is constructed from CNC machined 6061 aluminium. This allows the camera to feature the articulation required to frame the subject, but still be robust enough to handle the perils of remote operation (perching birds, heat, precipitation). A simple sheetmetal bracket and bottom entry threading compatible with off-the shelf cable conduit glands makes the V1 simple to install.

For

While in the employ of Observant

Involvement

• Whole product concept
• Product mock-ups and prototyping
• Detailed electronics design and PCB layout
• Detailed mechanical design including machined metal parts and sheetmetal
• Production documentation, sourcing and support

Status

Currently in production

*Images courtesy Observant
